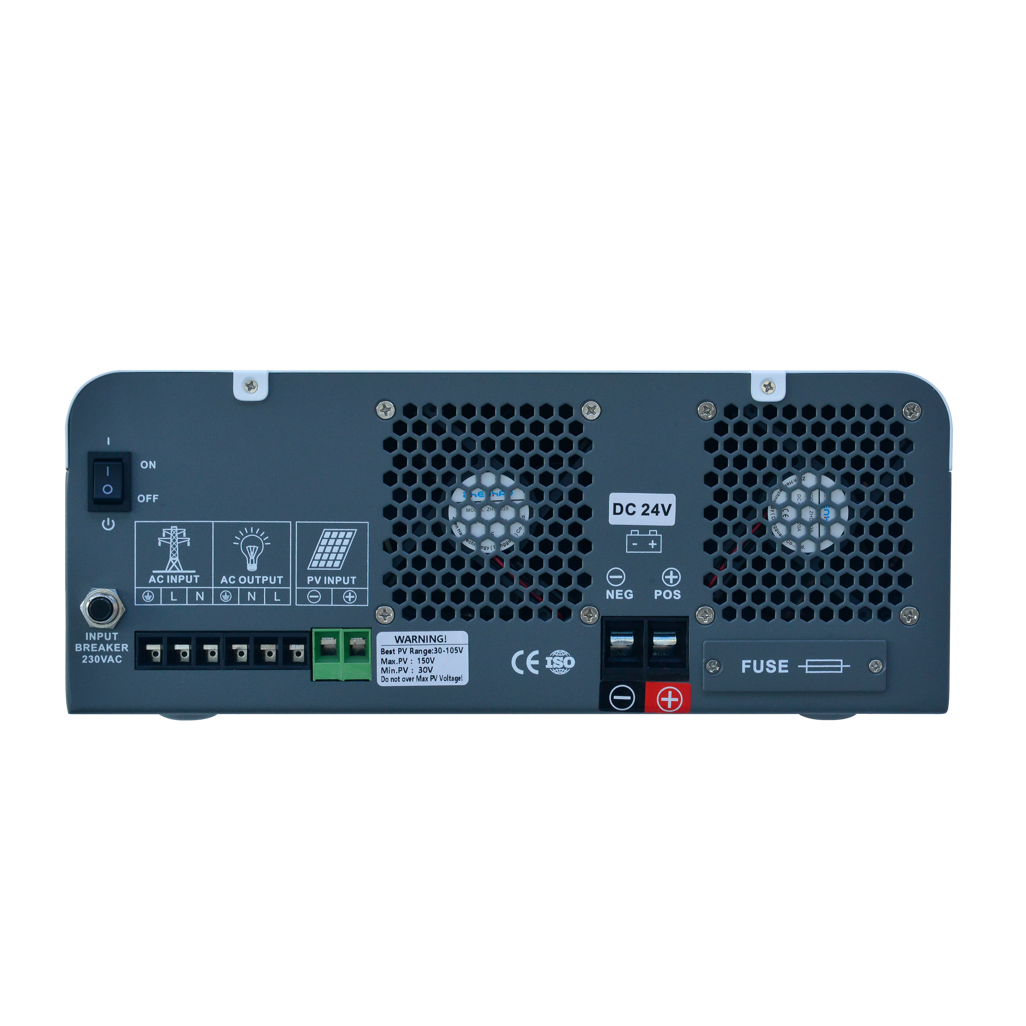

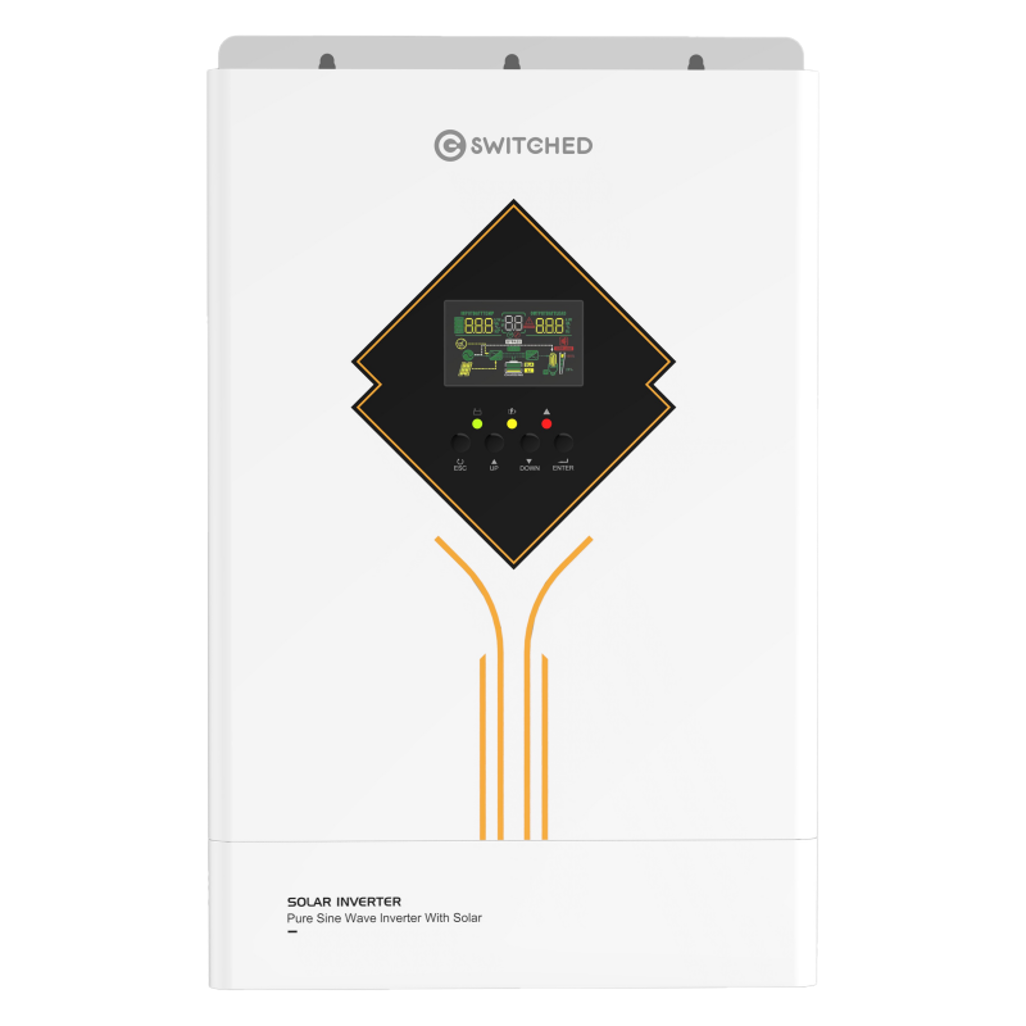

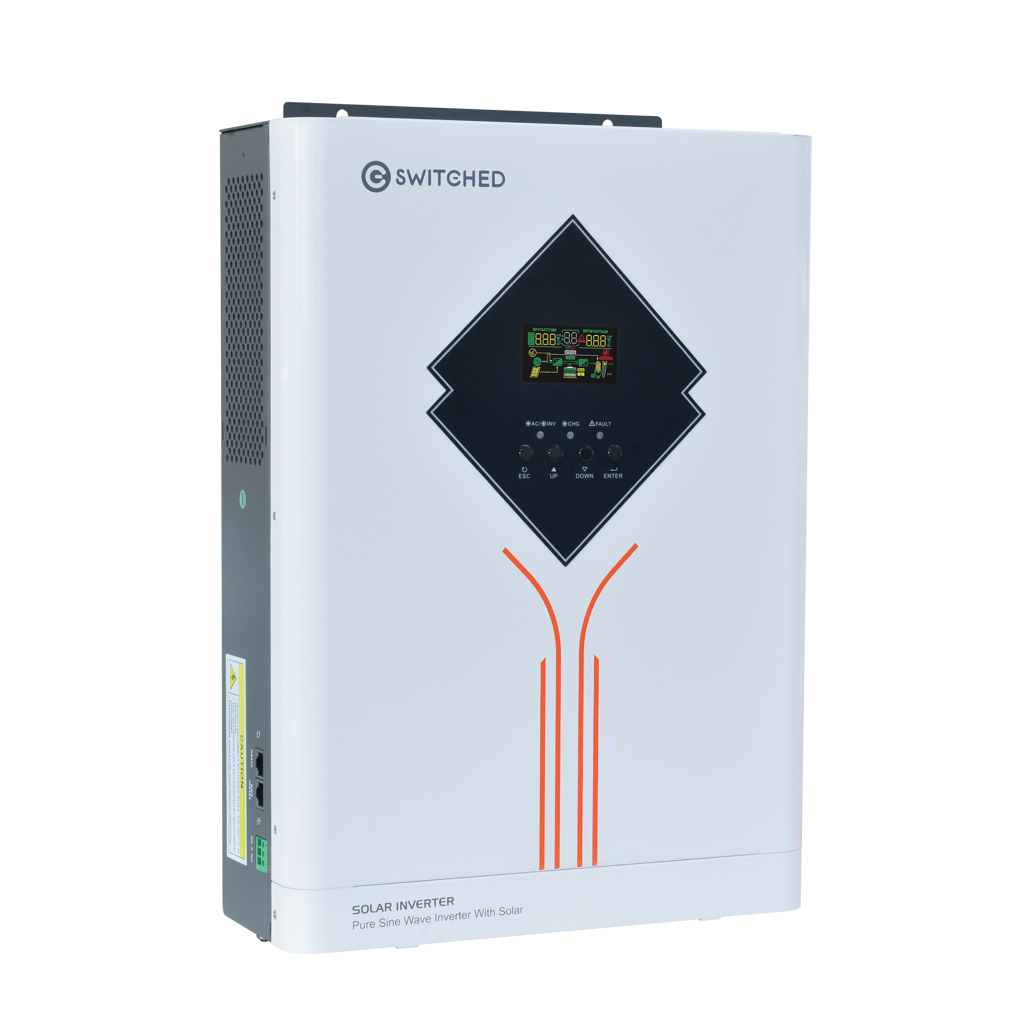

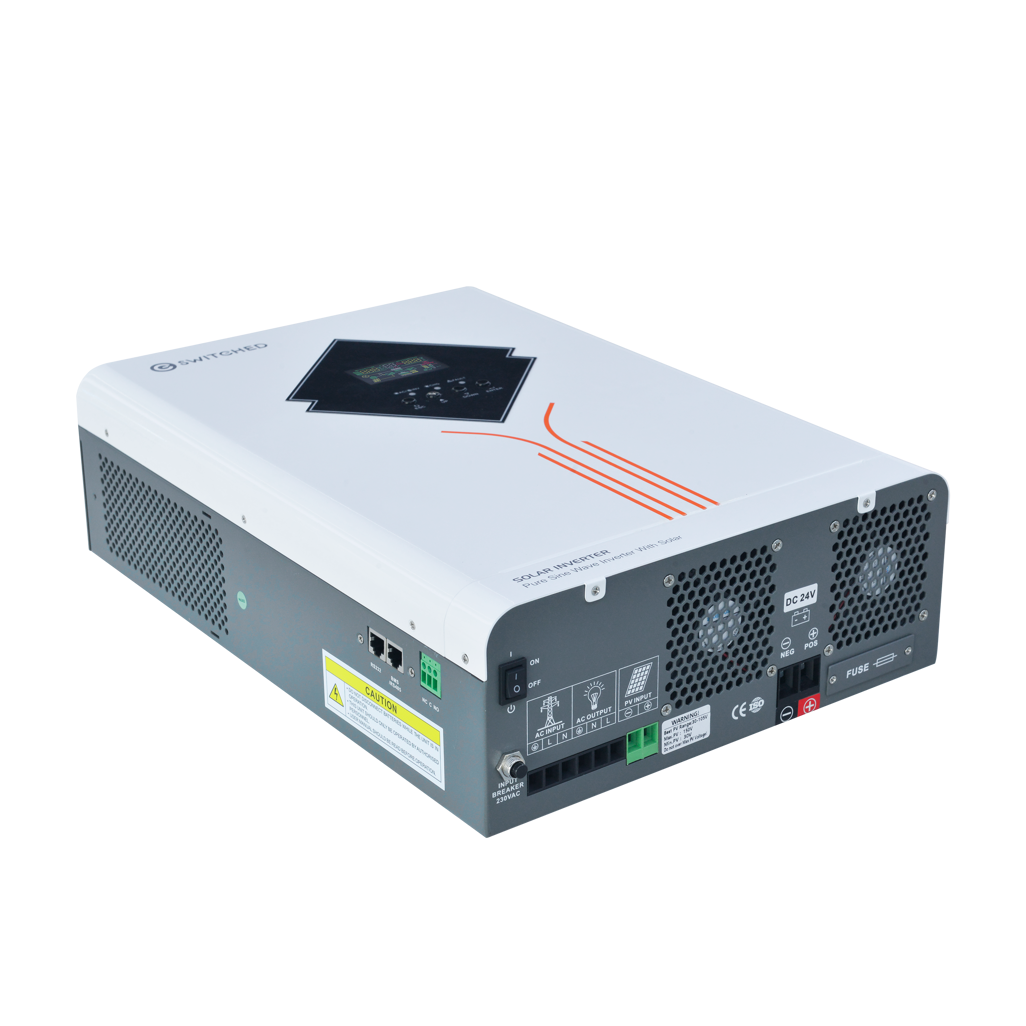

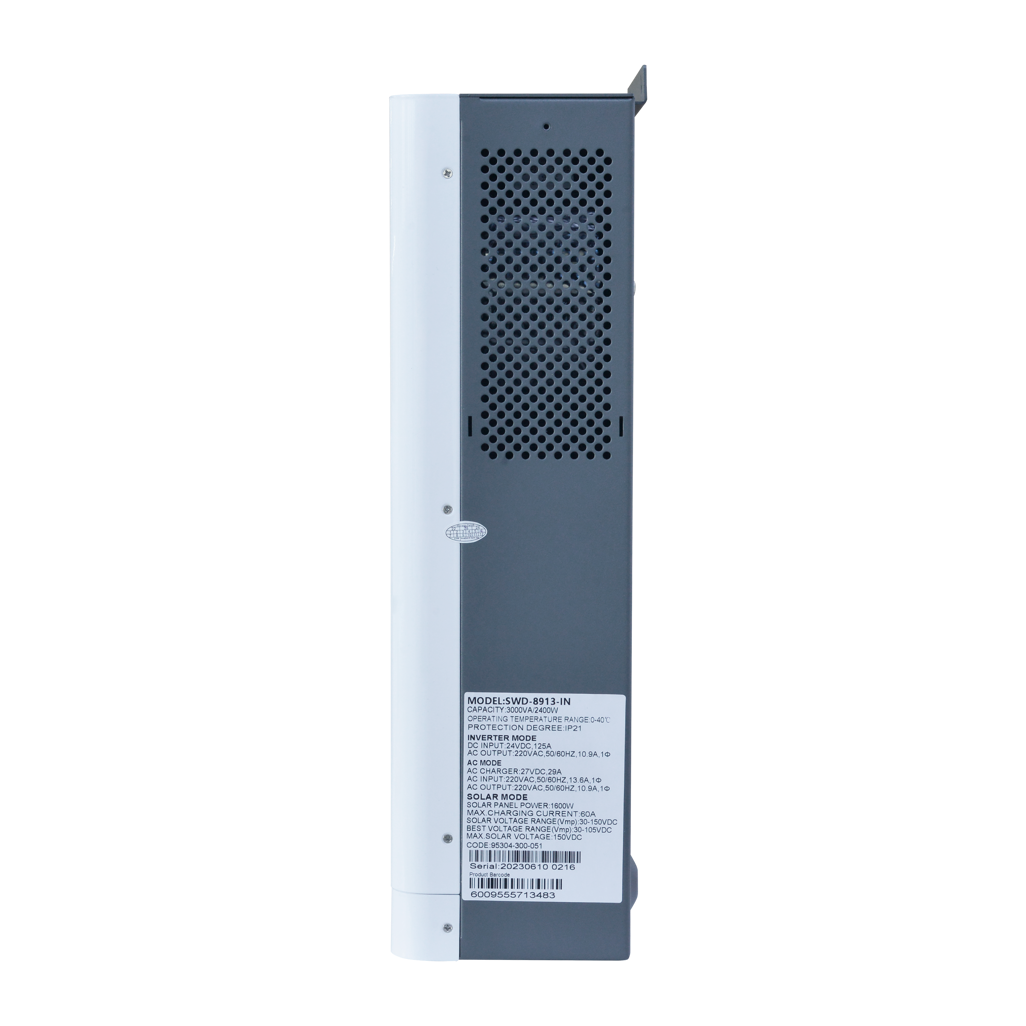

Switched 3000VA/2400W Inverter - Off-Grid
Switched 3000VA/2400W Inverter - Off-Grid
Couldn't load pickup availability
Features and Specifications
- Pure sine ware output - 240V L1-L2
- Optional MPPT/PWM solar charge controller 60A/80A/100A/120A
- MPPT Efficiency max 98%
- DC Start & Automatic Self-Diagnostic Function
- High Efficiency Design & ”Power Saving Mode” to Conserve Energy
- Auto restart when AC is recovering
- Smart battery charger design for optimized battery performance
- Selectable charging current based on applications
- AC input/DC input/Solar input optional priority
- Auto Restart Voltage
- Capacity(VA) 3000VA
- Rated Power 2400W
- Voltage(DC)12V/24V/48V
- Input Voltage 220VAC
- Voltage Range 154-265VAC ;185-264VAC ( selectable)
- Frequency 50-60HZ Auto-sensing
- Power Factor 0.8
- Output Voltage 220VAC±10%
- Frequency 50/60Hz±5%
- Waveform Pure Sine Wave
- Output Voltage Regulation 土10%
- Bypass Mode Yes
- Saver Mode Yes
- Efficiency Circuit Breaker
- Input Protection Circuit Breaker
- Output Protection VRLA / GEL /GEL DEEP CYCLE/Lithium
- Charging Current 30A/15A
- Battery Charging Voltage13.5VDC/27VDC/54VDC
- Maximum PV Array Power 24V: MPPT 30V-150VDC / PWM 30V-60VDC 48V: MPPT 60V-150VDC / PWM 60V-105VDC
- Maximum solar charge current 60A
- LCD indicator status AC input voltage/input frequency, PV voltage, PV current, Output Voltage/Frequency, Battery voltage, Load current etc.
- LED indicator status AC Line In Green/Inverter: Red/Charging: Yellow/Alarm: Red
- LOW battery alarm Audible alarm-5 seconds beeping
- Overload alarm Audible alarm- continuous beeping
- Fault 0-60℃
Dimensions
LXWXH(mm) 470mmX335mmX210mm
